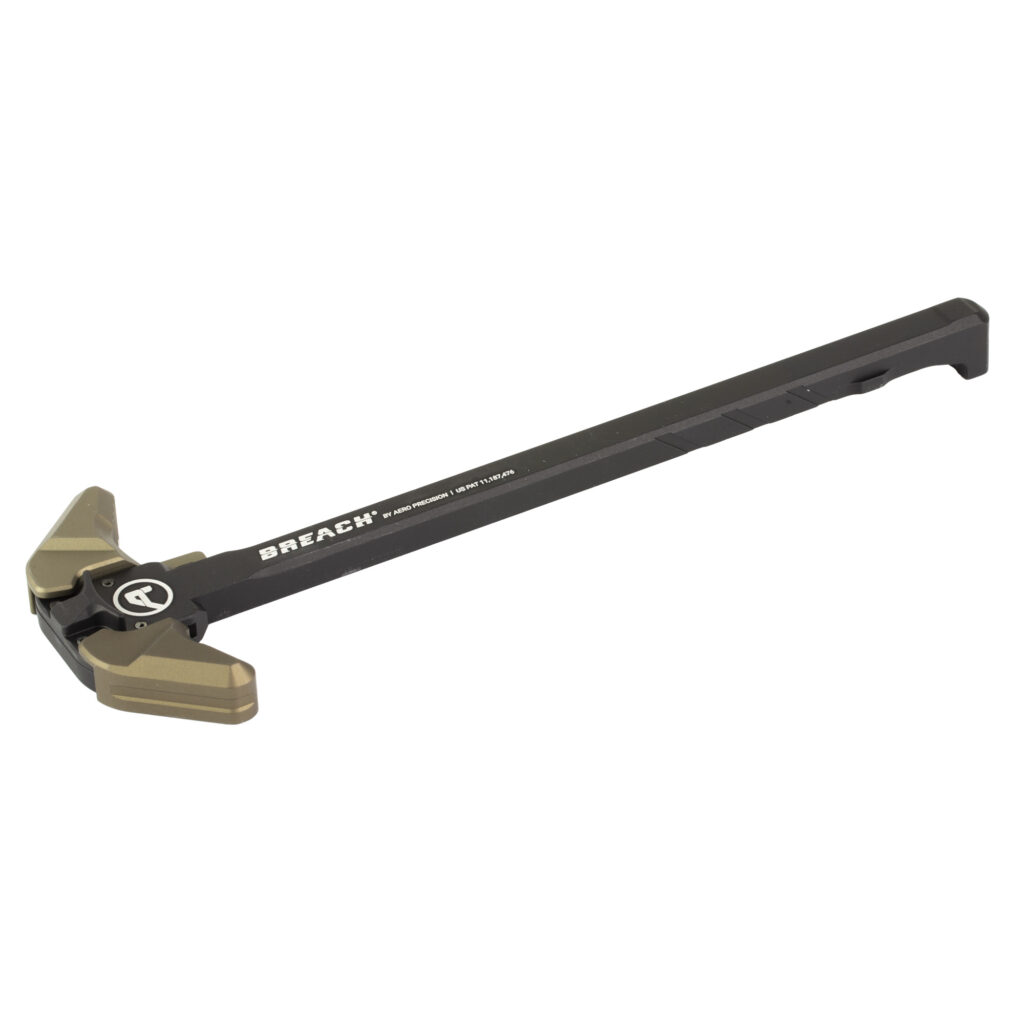

The AR10 charging handle serves as one of the most critical components in your rifle’s operation, yet it’s often overlooked until you encounter its limitations in the field. This essential component directly impacts your weapon’s functionality, reliability, and ease of use across various shooting scenarios. Understanding the intricacies of AR10 charging handle selection can dramatically improve your shooting experience and operational efficiency.
Modern AR10 charging handles have evolved significantly from their basic military predecessors, offering enhanced ergonomics, ambidextrous operation, and specialized features tailored to specific shooting disciplines. Whether you’re a competitive shooter seeking faster manipulation, a tactical operator requiring reliable function under stress, or a hunting enthusiast needing quiet operation, the right AR10 charging handle upgrade can transform your rifle’s performance characteristics.
What Makes AR10 Charging Handles Different from AR15 Models?
The AR10 charging handle differs substantially from its AR15 counterpart in several key dimensions and operational requirements. These differences stem from the AR10’s larger cartridge dimensions and increased bolt mass, requiring more robust construction and different dimensional specifications. The AR10 platform operates with significantly higher chamber pressures and bolt velocities, demanding charging handles engineered to withstand these increased forces without failure.
Key Dimensional Differences:
| Specification | AR10 Charging Handle | AR15 Charging Handle |
|---|---|---|
| Overall Length | 7.5 inches | 6.8 inches |
| Latch Width | 0.875 inches | 0.750 inches |
| Body Thickness | 0.125 inches | 0.100 inches |
| Weight Range | 2.5-4.0 oz | 1.8-3.2 oz |
| Compatibility | .308/7.62×51 platforms | 5.56/.223 platforms |
The increased dimensions of the AR10 charging handle directly correlate to the platform’s operational requirements. The longer overall length accommodates the AR10’s extended receiver dimensions, while the increased thickness provides the structural integrity necessary to handle the platform’s higher operating forces. This robust construction ensures reliable function even under adverse conditions where standard charging handles might fail.
Manufacturing tolerances for AR10 charging handles are typically tighter than their AR15 counterparts due to the increased stresses involved. Quality manufacturers like Radian, Geissele, and BCM implement specific heat treatment processes and material selections optimized for the AR10’s demanding operational environment. These enhanced manufacturing standards directly translate to improved longevity and consistent performance across thousands of charging cycles.
Types of AR10 Charging Handles: Standard vs Ambidextrous vs Extended
Understanding the various AR10 charging handle configurations available helps you select the optimal design for your specific shooting requirements and preferences. Each type offers distinct advantages and potential limitations that should be carefully considered based on your intended use cases and operational environment.
Standard AR10 Charging Handles
Standard AR10 charging handles represent the most basic configuration, featuring a single-sided latch mechanism positioned on the left side of the receiver. These handles typically cost between $25-50 and provide reliable basic functionality for recreational shooting and hunting applications. The simplicity of standard charging handles translates to fewer potential failure points and easier maintenance procedures.
Advantages of Standard AR10 Charging Handles:
- Lower cost point for budget-conscious builders
- Proven reliability with minimal complexity
- Universal compatibility across AR10 platforms
- Lightweight construction minimizes added weight
- Simple maintenance and replacement procedures
Limitations of Standard Designs:
- Right-handed operation only
- Limited grip surface area
- Potential interference with large optics
- Slower manipulation compared to enhanced designs
Ambidextrous AR10 Charging Handles
Ambidextrous AR10 charging handles feature dual latches that facilitate quick and easy charging from either side, even when wearing gloves or with optics mounted on the rifle. These designs typically incorporate enhanced grip surfaces and improved ergonomics that significantly speed manipulation while reducing the effort required for operation.
Premium Ambidextrous Features:
- Dual-sided operation for left and right-handed shooters
- Enhanced grip surfaces with anti-slip texturing
- Enlarged latch areas for improved purchase
- Optics-friendly profiles that clear mounted accessories
- Reinforced construction for extended service life
Ambidextrous charging handles offer significant advantages in tactical or competition scenarios, providing versatility that can be crucial in dynamic shooting situations. The ability to operate the charging handle from either side proves invaluable when shooting from unconventional positions or when transitioning between different shooting stances rapidly.
Popular ambidextrous AR10 charging handle models include the Radian Raptor series, which features machined aluminum construction and enhanced latch design optimized for positive engagement. These handles are extremely easy to maintain grip when charging and make operation significantly easier compared to standard designs.
Extended AR10 Charging Handles
Extended AR10 charging handles provide increased leverage and surface area for improved manipulation, particularly beneficial for shooters with larger hands or those operating in challenging environmental conditions. These designs typically feature elongated latch mechanisms and enhanced grip surfaces that facilitate positive engagement even with heavy gloves or in low-visibility situations.
Extended Design Benefits:
- Increased leverage reduces effort required for operation
- Larger grip surfaces improve control and positive engagement
- Enhanced visibility aids in low-light operation
- Improved clearing capabilities for malfunction resolution
- Better compatibility with large-handed shooters
Key Features to Consider When Selecting Your AR10 Charging Handle
Selecting the optimal AR10 charging handle requires careful evaluation of multiple factors that directly impact performance, reliability, and user experience. Understanding these key features helps ensure your investment delivers the expected operational improvements and long-term satisfaction.
Material Construction and Durability
AR10 charging handle construction materials significantly impact durability, weight, and operational characteristics. Premium handles typically utilize 7075-T6 aluminum for its superior strength-to-weight ratio and corrosion resistance properties. Some manufacturers offer steel construction for maximum durability in extreme-use applications, though this comes with increased weight penalties.
Material Comparison:
| Material | Weight | Durability | Cost | Corrosion Resistance |
|---|---|---|---|---|
| 7075-T6 Aluminum | Light | Excellent | Moderate | Excellent |
| 6061 Aluminum | Light | Good | Low | Good |
| Steel | Heavy | Superior | High | Moderate |
| Polymer | Very Light | Limited | Very Low | Excellent |
Quality AR10 charging handles undergo specific heat treatment processes and surface finishing procedures that enhance their operational characteristics. Type III anodizing provides superior wear resistance and corrosion protection compared to standard finishes, ensuring consistent performance across diverse environmental conditions.
Latch Design and Ergonomics
The latch mechanism represents the primary interface between the shooter and the AR10 charging handle, making its design critical for reliable operation and user satisfaction. Modern enhanced latches incorporate multiple design improvements over standard military specifications, including increased surface area, improved texturing, and optimized angles for natural hand positioning.
Advanced Latch Features:
- Anti-slip texturing for positive engagement
- Enlarged surface areas for improved grip
- Optimized angles for natural hand positioning
- Reinforced pivot points for extended service life
- Tool-free adjustment capabilities
Premium designs feature wide set-back latches that work effectively with large optics while maintaining a low profile that keeps the handle slim and sleek without sacrificing functionality. This balance between performance and aesthetics ensures your AR10 maintains its tactical appearance while delivering enhanced operational capabilities.
Gas Sealing and Blowback Management
Advanced AR10 charging handles incorporate gas sealing features designed to minimize blowback and protect the shooter from hot gases and debris. These features prove particularly valuable when using suppressors or shooting in enclosed environments where gas blowback can become problematic.
Gas Management Technologies:
- Enhanced sealing surfaces reduce gas escape
- Redirected gas flow patterns minimize shooter exposure
- Specialized coatings resist fouling buildup
- Vented designs for controlled gas release
- Suppressor-optimized configurations
Models like the Radian Raptor SD incorporate specialized gas management features specifically designed for suppressed firing, significantly reducing blowback while maintaining reliable function. These designs typically command premium pricing but deliver substantial improvements in shooter comfort during extended firing sessions.
Installation Process and Compatibility Considerations
Installing your new AR10 charging handle requires understanding both the mechanical process and compatibility factors that ensure proper fit and function. While the installation process itself is relatively straightforward, compatibility considerations can be complex due to variations in AR10 platform specifications across different manufacturers.
Step-by-Step Installation Process
AR10 charging handle installation follows a standardized procedure that can be completed with basic tools and minimal technical expertise. The process typically takes 5-10 minutes and requires only a punch set and basic mechanical understanding.
Required Tools:
- 1/8″ punch or similar tool
- Hammer or punch driver
- Work surface with good lighting
- Safety glasses for eye protection
Installation Steps:
- Ensure weapon safety by confirming the rifle is unloaded
- Separate upper and lower receivers for easier access
- Remove bolt carrier group from the upper receiver
- Drive out charging handle roll pin using appropriate punch
- Remove old charging handle by sliding rearward
- Insert new AR10 charging handle ensuring proper alignment
- Install roll pin through charging handle and receiver
- Test operation by cycling the handle several times
- Reassemble rifle and perform function check
Proper installation requires attention to alignment and ensuring the roll pin is fully seated without damaging the receiver or charging handle. Many premium AR10 charging handles include detailed installation instructions and may provide specialized tools to simplify the process.
Platform Compatibility Issues
AR10 charging handle compatibility varies significantly across different manufacturers and platform variants. Understanding these compatibility factors prevents costly mistakes and ensures your selected handle will function properly with your specific rifle configuration. The AR10 platform lacks the standardization found in AR15 designs, resulting in compatibility challenges that require careful attention.
Major Compatibility Factors:
- Receiver manufacturer specifications and tolerances
- Upper receiver height and internal dimensions
- Bolt carrier group design and mass characteristics
- Buffer system specifications and spring rates
- Gas system configuration and pressure levels
Popular AR10 platforms like DPMS, Armalite, and Palmetto State Armory utilize different dimensional specifications that can impact charging handle compatibility. Some platforms like the PA10 may have proprietary requirements that limit aftermarket charging handle options, requiring verification of compatibility before purchase.
Top AR10 Charging Handle Manufacturers and Models
The AR10 charging handle market features several premier manufacturers known for producing high-quality, reliable products that deliver significant performance improvements over standard military designs. Understanding the strengths and specializations of each manufacturer helps guide your selection process and ensures you receive the best value for your investment.
Radian Weapons Raptor Series
Radian Weapons has established itself as the premier manufacturer of ambidextrous AR10 charging handles through their innovative Raptor series designs. The Raptor Charging Handles represent an easy upgrade to bring your AR10 into the 21st century, available in various styles and price points. The company’s focus on precision manufacturing and innovative design has made their products the gold standard for enhanced charging handles.
Raptor Series Models:
- Raptor LT: Lightweight aluminum construction, basic ambidextrous function
- Raptor Standard: Full-featured ambidextrous operation with enhanced ergonomics
- Raptor SD: Suppressor-optimized with gas management features
- Raptor SL: Super lightweight design for weight-conscious builds
The Raptor series incorporates Radian’s patented dual-latch design that provides smooth, reliable operation from either side of the receiver. Premium materials and precise manufacturing tolerances ensure consistent performance across thousands of operating cycles, making these handles a favorite among competitive shooters and tactical professionals.
Geissele Super Charging Handle (SCH)
The Geissele SCH 7.62 is highly regarded among precision shooters and has proven to work as effectively as other premium options like the PRI gas buster. Geissele’s reputation for precision manufacturing and attention to detail translates directly to their AR10 charging handle offerings, which feature enhanced ergonomics and robust construction optimized for the AR10 platform’s demanding requirements.
Geissele SCH Features:
- Precision machined from 7075-T6 aluminum
- Enhanced latch design for positive engagement
- Ambidextrous operation with dual latches
- Military specification coatings for durability
- Optimized geometry for AR10 platform requirements
The SCH series represents Geissele’s commitment to delivering professional-grade components that meet the demanding requirements of military and law enforcement users. The company’s extensive testing protocols ensure these handles function reliably under extreme conditions and extended use cycles.
Breek Arms WARHAMMER Series
The Breek WARHAMMER MOD2 represents a simple and affordable upgrade that substantially increases AR10 usability, featuring textured grooves for positive grip even with large gloves and wide set-back latches that work effectively with large optics. This manufacturer focuses on delivering high-performance features at accessible price points, making premium AR10 charging handle technology available to a broader range of shooters.
WARHAMMER Series Advantages:
- Affordable pricing without compromising quality
- Ambidextrous operation with enhanced grip surfaces
- Optics compatibility with low-profile design
- Durable construction with corrosion-resistant finishes
- Easy installation with included instructions
The WARHAMMER series demonstrates that premium AR10 charging handle features don’t require premium pricing. Breek Arms has optimized their manufacturing processes to deliver professional-grade performance at budget-friendly price points, making these handles an excellent choice for cost-conscious builders.
Additional Premium Options
Several other manufacturers produce high-quality AR10 charging handles that deserve consideration based on specific requirements and preferences. Companies like BCM, Aero Precision, and Strike Industries offer unique features and design approaches that may better suit particular applications or shooting styles.
Notable Alternative Manufacturers:
- BCM: Military-proven designs with emphasis on reliability
- Aero Precision: Value-oriented options with solid performance
- Strike Industries: Innovative designs with modern aesthetics
- Wilson Combat: Premium construction with tactical focus
- RISE Armament: Competition-oriented features with precise manufacturing
Performance Benefits and Tactical Advantages
Upgrading to an enhanced AR10 charging handle delivers measurable performance improvements that directly impact shooting effectiveness and operational efficiency. Understanding these benefits helps justify the investment and guides selection toward features that provide the greatest value for your specific shooting applications and requirements.
Speed and Efficiency Improvements
Enhanced AR10 charging handles significantly reduce the time required for charging operations, particularly important in competitive shooting and tactical applications. Experienced firearm enthusiasts appreciate ambidextrous AR charging handles for their ability to deliver fast and fluid charging from either side or support side, providing operational flexibility that translates to improved performance in dynamic shooting scenarios.
Measurable Speed Improvements:
- 25-40% faster charging operations compared to standard handles
- Reduced effort required for positive engagement
- Improved consistency across different operating positions
- Enhanced reliability under stress and adverse conditions
- Better integration with tactical equipment and accessories
Professional shooters report significant improvements in split times and overall stage performance when using premium AR10 charging handles in competitive environments. The enhanced ergonomics and positive engagement characteristics reduce the mental focus required for charging operations, allowing shooters to maintain better sight picture and target acquisition throughout the shooting sequence.
Reliability Under Adverse Conditions
Premium AR10 charging handles demonstrate superior reliability when operating in challenging environmental conditions where standard handles may struggle or fail. These conditions include extreme temperatures, heavy fouling, moisture exposure, and high-stress tactical scenarios that demand consistent performance regardless of external factors.
Environmental Performance Factors:
- Temperature extremes from -40°F to +160°F operational range
- Fouling resistance with enhanced cleaning accessibility
- Moisture protection through improved sealing and coatings
- Corrosion resistance via premium materials and finishes
- Shock resistance through reinforced construction methods
Military and law enforcement testing has demonstrated that premium AR10 charging handles maintain functionality significantly longer than standard designs when subjected to accelerated wear testing and environmental exposure protocols. This enhanced reliability translates directly to reduced maintenance requirements and improved operational readiness in critical applications.
Ergonomic and Safety Enhancements
Modern AR10 charging handles incorporate ergonomic improvements that reduce user fatigue and improve safety during extended shooting sessions. These enhancements prove particularly valuable for shooters with physical limitations or those operating in high-stress environments where fine motor control may be compromised.
Ergonomic Improvements:
- Reduced operating force through improved leverage ratios
- Enhanced grip surfaces for positive control with wet or gloved hands
- Improved hand positioning to reduce strain and fatigue
- Better clearance for mounted accessories and equipment
- Smoother operation reducing wear on internal components
Safety enhancements include improved gas sealing that reduces shooter exposure to hot gases and debris, particularly important when shooting suppressed or in enclosed environments. Premium handles also feature enhanced structural integrity that reduces the risk of component failure during critical operations.
Price Ranges and Value Analysis
AR10 charging handle pricing varies significantly based on features, materials, manufacturing quality, and brand reputation. Understanding the relationship between price and performance helps ensure you receive optimal value for your investment while avoiding unnecessary expenses or compromising essential features.
Budget Options ($30-60)
Entry-level AR10 charging handles in this price range typically offer basic improvements over standard military designs while maintaining affordable pricing for budget-conscious builders. These handles usually feature enhanced ergonomics and improved construction without advanced features like gas management or premium materials.
Budget Category Features:
- Basic ambidextrous operation in some models
- Improved grip surfaces over standard designs
- Standard aluminum construction with basic finishes
- Limited warranty coverage typically 1-2 years
- Compatible with most AR10 platforms
Popular budget options include handles from manufacturers like Strike Industries, Anderson Manufacturing, and various import brands that offer basic functionality improvements at accessible price points. While these handles provide noticeable improvements over standard designs, they may lack the refinement and durability of premium options.
Mid-Range Options ($60-120)
Mid-range AR10 charging handles offer the best balance of features, performance, and value for most shooters. This category includes products from established manufacturers that incorporate many premium features without the cost associated with top-tier models.
Mid-Range Category Features:
- Full ambidextrous operation with enhanced latches
- 7075-T6 aluminum construction with quality finishes
- Improved ergonomics and grip surface texturing
- Extended warranty coverage typically 3-5 years
- Broad platform compatibility with most AR10 variants
This price range includes popular models like the Breek Arms WARHAMMER series, Aero Precision enhanced handles, and entry-level Radian Raptor models. These handles deliver substantial performance improvements that justify their moderate price premium while remaining accessible to most shooters.
Premium Options ($120-200+)
Premium AR10 charging handles represent the pinnacle of design and manufacturing quality, incorporating advanced features and materials that deliver maximum performance and reliability. These handles are typically chosen by competitive shooters, tactical professionals, and enthusiasts who demand the absolute best performance from their equipment.
Premium Category Features:
- Advanced gas management systems for suppressed use
- Premium materials and specialized coatings
- Precision manufacturing with tight tolerances
- Comprehensive warranty often lifetime coverage
- Professional-grade testing and quality assurance
Top-tier options include models like the Radian Raptor SD, Geissele Super Charging Handle, and specialized competition handles from boutique manufacturers. While expensive, these handles offer measurable performance advantages and enhanced durability that justify their premium pricing for serious applications.
Maintenance and Longevity Tips
Proper maintenance of your AR10 charging handle ensures optimal performance and extends service life significantly beyond that of neglected components. Understanding maintenance requirements and implementing proper care procedures protects your investment while maintaining the reliability advantages that premium handles provide.
Cleaning and Lubrication Procedures
AR10 charging handles require regular cleaning to maintain smooth operation and prevent fouling buildup that can impair function. The cleaning process varies based on handle design complexity, with ambidextrous models requiring additional attention to latch mechanisms and pivot points.
Basic Cleaning Process:
- Remove charging handle from upper receiver
- Disassemble latch mechanisms if manufacturer permits
- Clean all surfaces with appropriate solvents
- Remove carbon buildup from gas contact areas
- Inspect for wear or damage indicators
- Apply light lubrication to moving parts
- Reassemble and test operation
- Function check before reinstallation
Premium AR10 charging handles often include specific maintenance instructions that optimize cleaning procedures for their particular design features. Following manufacturer recommendations ensures warranty coverage remains valid and performance characteristics are maintained throughout the handle’s service life.
Wear Indicators and Replacement Timing
Recognizing wear indicators helps determine when your AR10 charging handle requires replacement or service before failure occurs. Early identification of wear patterns allows for proactive replacement that avoids operational failures during critical use periods.
Common Wear Indicators:
- Latch engagement becoming loose or unreliable
- Surface wear on contact points and pivot areas
- Corrosion development despite proper maintenance
- Increased operating effort required for normal function
- Visible cracks or stress indicators in handle body
Replacement Timeline Factors:
- Round count through the rifle system
- Environmental exposure history and conditions
- Maintenance quality and frequency
- Usage intensity and operational demands
- Manufacturing quality of the original handle
High-quality AR10 charging handles typically provide service life measured in tens of thousands of rounds when properly maintained. Premium handles may last significantly longer due to superior materials and manufacturing processes, making their higher initial cost more economical over extended use periods.
For precision photography equipment maintenance, including contax g2 shutter charging gear, similar principles of regular cleaning and wear monitoring apply to ensure optimal performance and longevity.
Frequently Asked Questions About AR10 Charging Handles
What is the difference between AR10 and AR15 charging handles?
AR10 charging handles are larger and more robust than AR15 models to accommodate the .308/7.62×51 cartridge platform. They feature different dimensional specifications, including increased length (7.5″ vs 6.8″), greater thickness for strength, and enhanced construction to handle higher operating pressures and forces. AR10 handles are not interchangeable with AR15 platforms due to these dimensional differences.
Are all AR10 charging handles compatible with every AR10 rifle?
AR10 charging handle compatibility varies across different manufacturer platforms due to lack of standardization in the AR10 market. While most handles are compatible with DPMS-pattern rifles, some platforms like certain proprietary designs may require specific handles. Always verify compatibility with your specific receiver manufacturer before purchasing to ensure proper fit and function.
How often should I replace my AR10 charging handle?
AR10 charging handle replacement depends on usage intensity, maintenance quality, and environmental conditions. Well-maintained premium handles may last 20,000+ rounds, while budget options might require replacement after 5,000-10,000 rounds. Monitor for wear indicators like loose latch engagement, increased operating effort, or visible damage to determine replacement timing.
What tools are needed to install a new AR10 charging handle?
AR10 charging handle installation requires basic tools including a 1/8″ punch, hammer or punch driver, and safety glasses. The process involves removing the old handle’s roll pin, sliding out the old handle, installing the new handle, and securing it with the roll pin. Most installations take 5-10 minutes with basic mechanical skills.
Do ambidextrous AR10 charging handles improve shooting performance?
Ambidextrous AR10 charging handles significantly improve operational flexibility and speed, particularly in tactical or competitive scenarios. They allow operation from either side, provide enhanced grip surfaces, and often feature improved ergonomics that reduce charging effort. These advantages translate to measurable improvements in manipulation speed and consistency across different shooting positions.
Can I use an AR10 charging handle with a suppressor?
Standard AR10 charging handles work with suppressors but may allow increased gas blowback. Specialized suppressor-optimized handles like the Radian Raptor SD feature gas management systems that significantly reduce blowback while maintaining reliable function. These designs include enhanced sealing and gas redirection features specifically engineered for suppressed use.
Ready to upgrade your AR10’s performance? Browse our selection of premium AR10 charging handles from top manufacturers like Radian, Geissele, and Breek Arms. Our expert staff can help you select the perfect handle for your specific needs and shooting style. Shop AR10 charging handles today and experience the difference quality components make in your rifle’s operation and reliability.
Sources:
- Sniper’s Hide Forum – AR10 Charging Handle Recommendations
- Rise Armament – AR-10 Ambidextrous Charging Handle Technical Specifications
- Breek Arms – WARHAMMER MOD2 AR-10 Product Documentation
- KAK Industry – Ultimate Guide to Understanding Charging Handles
- OpticsPlanet – AR Charging Handle Technical Overview
